Air Regulator
Move the mouse over the image to zoom
- Volume Discount
[Features]·Pressure reducing valve that can adjust pressure. ·It comes with a pressure gauge and a bracket.
(i)Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Part Number
Configured Part Number is shown.
MSR8A-S
-
- Order Qty.
-
- Unit Price
- ---
-
- Total
- ---
-
- Days to ship
- ---
Configured Specifications
| Regulator, Pressure Boosting Valve | Others | Regulator Type | Standard |
|---|---|---|---|
| Applicable Fluid | Compressed Air | Shape | Standard |
| Set Pressure Range(MPa) | 0.05～0.85 | Supply Side, Connection Dia. | 1/4 |
| Operating Pressure Range(MPa) | 0.05～1.0 | Flow Direction | (Right) |
| Mass(g) | 250 | Nominal (No.) | 8A-S |
| Ambient Temperature Range(°C) | 5~60 | Operating Pressure Range(MPa) | 0.05~1.0 |
| Show More | |||
| RoHS | 10 | - | - |
| Show Less | |||
[ A ]Accessory: Pressure Gauge 1 pc., Bracket 1 pc.
Specifications
| Part Number | - | Nomi. Filtration Rating |
| MSAF8A-S | - | 40 |
| Part Number | Rc(PT) | Operating Pressure MPa | Pressure Setting Range MPa | Pressure Resistance MPa | Ambient Temperature Range (°C) | Applicable Fluid | Mass | Unit Price | |
| Type | No. | (g) | |||||||
| MSR | 8A-S | 1/4 | 0.05~1.0 | 0.05~0.85 | 1.5 | 5~60 | Air | 250 | |
Part Number
| Part Number |
|---|
| MSR8A-S |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS |
|---|---|---|---|---|---|
MYR 169.50 | 1 Piece(s) | Available | 2 Day(s) | 10 |
| Part Number |
|---|
More Information

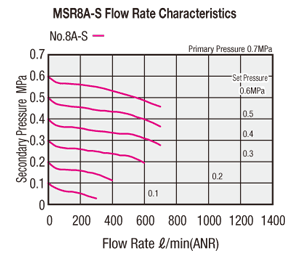

This graph shows that when the primary pressure is constant at 0.7 MPa, the secondary set pressure drops according to the flow rate used.
Basic Information
| Regulator, Pressure Boosting Valve | Others | Regulator Type | Standard | Applicable Fluid | Compressed Air |
|---|---|---|---|---|---|
| Shape | Standard | Set Pressure Range(MPa) | 0.05～0.85 | Supply Side, Connection Dia. | 1/4 |
| Operating Pressure Range(MPa) | 0.05::1.0 | Flow Direction | (Right) | Mass(g) | 250 |
| Nominal (No.) | 8A-S | Ambient Temperature Range(°C) | 5~60 | Operating Pressure Range(MPa) | 0.05~1.0 |

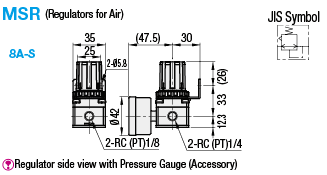

Please check the type/dimensions/specifications of the part MSR8A-S in the Air Regulator series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
