[Clean & Pack]Fluororesin Plates
![[Clean & Pack]Fluororesin Plates](http://my.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110311034009_001.jpg?$product_main$)
Two types of cleaning methods are available: "degreasing" and "precision cleaning." They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
| Cleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case |
| Degreasing | SL-□□ | Anti-rust packing | Removal of organic stains | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Removal of organic stains Removal of contamination and dusts | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process |
Fluororesin can be used for sheet packing and electric insulator since it has excellent impact strength as well as chemical stability and electric property.
(i)Caution
- There is no discoloration or dimensional change due to cleaning.
Part Number
Configured Part Number is shown.
■ Standard Type
[ ! ]A ≥ B
[ ! ]A ≥ B
| Finish | 4 Sides | Upper-Lower Surface | ||
| Machining Method | Surface texture | Machining Method | Surface texture | |
| Circular sawing | Circular sawing |  | Material |  |
| [ ! ] The roughness values of the material surface are for reference only. | ||||

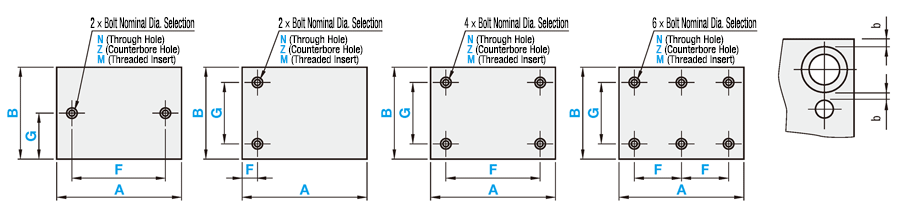

■ Hole Machined Type
2H
2HL
4H
6H
| Nominal Dia. | b (Minimum Value) |
| 3 to 10 | 2.5 |
| Hole Machining Details | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| N (Through Hole) | Z (Counterbored Hole) | N (Through Hole) / Z (Counterbored Hole) Details | M (Threaded Insert) | ■Table 1 M (Thread Insert) Details | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |  |
|  Ordering Code (Example) M4-L6 [ ! ]L ≤ T－1 [ ! ] When L + 5 < T, drilled holes will be blind ones. |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Type | [M] Material | [M] Grade | Color | Operating Ambient Temperature | Cleaning Method | |||
| Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | |||||
| SL-PTFE | PTFE Resin | Standard | White | －40 to 250°C | Degreasing | General environment | Single packing | General environment |
| SH-PTFE | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | ||||
[ ! ] See the details of degreasing and precision cleaning shown at the bottom of the
specification table.Specification Table
■ Standard Type
| Part Number | — | A | — | B | — | T |
| SL-PTFE | — | 100 | — | 50 | — | 5 |
■Hole Machined Type
| Part Number | — | A | — | B | — | T | — | F | — | G | — | Screw Nominal Dia. | — | L |
| SL-PTFE4H | — | 200 | — | 200 | — | 10 | — | F180 | — | G180 | — | Z5 | ||
| SH-PTFE2H | — | 230 | — | 130 | — | 25 | — | F80 | — | G50 | — | M8 | — | L12 |
• T Dimension Tolerance, Rate of Camber and Torsion
• Dimension Tolerance of A and B: ±1.0
| T | T Dimension Tolerance | Rates of Camber and Torsion per 1,000 mm |
| PTFE | ||
| 1 | ±0.2 | 3.0% or less |
| 2 | ||
| 3 | ±0.4 | |
| 5 | ||
| 8 | 0 to +1.0 | 1.5% or less |
| 10 | ||
| 15 | 0 to +2.0 | 1.0% or Less |
| 20 | ||
| 25 | ||
| 30 |
■ Standard Type
| Part Number | A | B | T |
| Type | 1 mm Increments | Selection | |
| (Standard) | 20 to 500 | 20 to 500 | 1·2·3 |
| SL-PTFE | 5·8·10·15 | ||
| SH-PTFE | 20·25·30 | ||
■ Hole Machined Type
[!] Dimension F Specification Range – 2H/4H type selection: d (d1) + 2.5 ≤ F ≤ A - d (d1) - 5; for 2HL: d (d1)/2 + 2.5 ≤ F ≤ A - d (d1)/2 - 2.5; for 6H: d (d1) + 2.5 ≤ F ≤ (A - d (d1) - 5)/2 is required.
[!]Dimension G Specification Range – 2H type selection: d (d1)/2 + 2.5 ≤ G ≤ B - d (d1)/2 - 2.5; for 2HL, 4H and 6H: d (d1) + 2.5 ≤ G ≤ B - d (d1) - 5 is required.
(d for through hole and threaded insert, d1 for counterbore)
[ ! ] For Hole Machined Type, select N (through hole) or Z (counterbore hole); for Threaded Insert Type, select M (threaded insert) or L (insertion length).
[ ! ] SL-PTFE and SH-PTFE may have camber as it is a soft material.
| Part Number | A | B | T | F | G | Hole Machined Type Screw Nominal Dia. Selection | |||||||||||||
| Through Hole | Counterbore Hole | Threaded Insert | |||||||||||||||||
| Type | Number of Holes | 1 mm Increments | Selection | 0.5 mm Increments | N | Z | M | L | |||||||||||
| (Standard) | 2H(Horizontal) | 20 to 500 | 20 to 500 | 1·2·3 | 6 to 491.5 | 4.5 to 495.5 | 3 | — | — | — | |||||||||
| SL-PTFE | 2HL(Vertical) | (2H·4H) | (2H) | 4 | |||||||||||||||
| SH-PTFE | 4H | 5 | 4.5 to 495.5 (2HL) | 5 | — | 3 | 4 | Select from Table 1 | |||||||||||
| 6H | 8 | 6 to 245.5 | 6 to 491.5 | 6 | 3 | 4 | 5 | 3 | 4 | 5 | 6 | ||||||||
| 10 | (6H) | (2HL·4H·6H) | 8 | 4 | 5 | 6 | 3 | 4 | 5 | 6 | 8 | ||||||||
| 15·20·25·30 | 10 | 4 | 5 | 6 | 8 | 3 | 4 | 5 | 6 | 8 | 10 | ||||||||
[!]Dimension G Specification Range – 2H type selection: d (d1)/2 + 2.5 ≤ G ≤ B - d (d1)/2 - 2.5; for 2HL, 4H and 6H: d (d1) + 2.5 ≤ G ≤ B - d (d1) - 5 is required.
(d for through hole and threaded insert, d1 for counterbore)
[ ! ] For Hole Machined Type, select N (through hole) or Z (counterbore hole); for Threaded Insert Type, select M (threaded insert) or L (insertion length).
[ ! ] SL-PTFE and SH-PTFE may have camber as it is a soft material.
Alterations
| Alterations | Corner Radius Machining | Corner Cut | Hole Position from Left | Hole Position from Bottom | |||
 |  |  |  | ||||
| Code | CRA·CRB·CRC·CRD | CCA·CCB·CCC·CCD | XC | YC | |||
| Spec. | Adds radius machining to any corner. R = 5 mm Increments [!] 10 ≤ A (B) - R (2R) [ ! ]5 ≤ CRA·CRB·CRC·CRD ≤ 100 Ordering code (Example) Adds R10 at the corner of A and C | Any corner can be cut. 5 ≤ corner cut ≤ 50 10 ≤ A - C (2C) or 10 ≤ B - C (2C) 5 mm Increments Ordering Code Example: When the corners of A and D are cut by C5 >> CCA5 - CCD5 [ ! ] Available for Standard Type only | XC = 0.5 mm Increments " ! " (2H, 4H Type) d (d1 )/2 + 2.5 ≤ XC ≤ A - F - d (d1 )/2 - 2.5 " ! " (6H Type) d (d1 )/2 + 2.5 ≤ XC ≤ A - 2F - d (d1 )/2 - 2.5 | YC = 0.5 mm Increments [ ! ] d (d1 )/2 + 2.5 ≤ YC ≤ B - G - d (d1 )/2 - 2.5 [NG] Not available for 2H Type | |||
Cleaning Process· Degreasing (Part Number: SL-□□)
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 IPA Cleaning |  |  Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | |  Single Packing |
· Precision cleaning (Part Number: SH-□□)
Working Environment: General environment | Working Environment: Class 1,000 | Working Environment: Class 10 | ||||||
|---|---|---|---|---|---|---|---|---|
IPA Cleaning | | Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | | Use nitrogen blow | |  Degassing double packing |

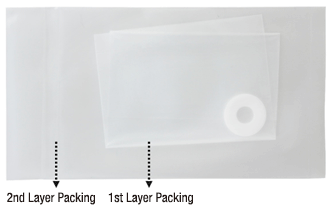

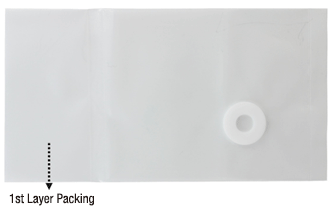

Packaging ExampleDegreasing (Part Number: SL-□□) | Precision Cleaning (Part Number: SH-□□) [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case and Process |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Removal of organic stains | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Removal of organic stains Removal of contamination and dusts | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| SH-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,4] |
| SH-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-N[3,4,5,6,8,10] |
| SH-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-Z3 |
| SH-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-M[3,4] |
| SH-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10] |
| SH-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-Z3 |
| SH-PTFE4H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[6-491.5/0.5]-M[3,4] |
| SH-PTFE4H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10] |
| SH-PTFE4H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[6-491.5/0.5]-Z3 |
| SH-PTFE6H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-245.5/0.5]-G[6-491.5/0.5]-M[3,4] |
| SH-PTFE6H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-245.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10] |
| SH-PTFE6H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-245.5/0.5]-G[6-491.5/0.5]-Z3 |
| SH-PTFE-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30] |
| SL-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-M[3,4] |
| SL-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-N[3,4,5,6,8,10] |
| SL-PTFE2H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[4.5-495.5/0.5]-Z3 |
| SL-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-M[3,4] |
| SL-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10] |
| SL-PTFE2HL-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[4.5-495.5/0.5]-G[6-491.5/0.5]-Z3 |
| SL-PTFE4H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[6-491.5/0.5]-M[3,4] |
| SL-PTFE4H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10] |
| SL-PTFE4H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-491.5/0.5]-G[6-491.5/0.5]-Z3 |
| SL-PTFE6H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-245.5/0.5]-G[6-491.5/0.5]-M[3,4] |
| SL-PTFE6H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-245.5/0.5]-G[6-491.5/0.5]-N[3,4,5,6,8,10] |
| SL-PTFE6H-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30]-F[6-245.5/0.5]-G[6-491.5/0.5]-Z3 |
| SL-PTFE-[20-500/1]-[20-500/1]-[1,2,3,5,8,10,15,20,25,30] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Hole Drilling | Length, A Dimension (mm) | Width, B Dimension (mm) | Plate Thickness, T Dimension (mm) | Through Hole, Bolt Nominal Diameter | Counterbore Hole, Bolt Nominal Diameter | Threaded Insert, Bolt Nominal Diameter | A Side Pitch, F Dimension (mm) | B Side Pitch, G Dimension (mm) | Cleaning Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 11 Day(s) or more | 2H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | - | 3 ～ 4 | 6 ～ 491.5 | 4.5 ～ 495.5 | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 2H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | 3 ～ 10 | - | - | 6 ～ 491.5 | 4.5 ～ 495.5 | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 2H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | 3 | - | 6 ～ 491.5 | 4.5 ～ 495.5 | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 2HL | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | - | 3 ～ 4 | 4.5 ～ 495.5 | 6 ～ 491.5 | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 2HL | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | 3 ～ 10 | - | - | 4.5 ～ 495.5 | 6 ～ 491.5 | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 2HL | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | 3 | - | 4.5 ～ 495.5 | 6 ～ 491.5 | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 4H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | - | 3 ～ 4 | 6 ～ 491.5 | 6 ～ 491.5 | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 4H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | 3 ～ 10 | - | - | 6 ～ 491.5 | 6 ～ 491.5 | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 4H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | 3 | - | 6 ～ 491.5 | 6 ～ 491.5 | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 6H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | - | 3 ～ 4 | 6 ～ 245.5 | 6 ～ 491.5 | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 6H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | 3 ～ 10 | - | - | 6 ～ 245.5 | 6 ～ 491.5 | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 6H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | 3 | - | 6 ～ 245.5 | 6 ～ 491.5 | Precision Cleaning | ||
- | 1 Piece(s) | 7 Day(s) or more | No Drilling Alteration | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | - | - | - | - | Precision Cleaning | ||
- | 1 Piece(s) | 11 Day(s) or more | 2H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | - | 3 ～ 4 | 6 ～ 491.5 | 4.5 ～ 495.5 | Degreasing | ||
- | 1 Piece(s) | 11 Day(s) or more | 2H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | 3 ～ 10 | - | - | 6 ～ 491.5 | 4.5 ～ 495.5 | Degreasing | ||
- | 1 Piece(s) | 11 Day(s) or more | 2H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | 3 | - | 6 ～ 491.5 | 4.5 ～ 495.5 | Degreasing | ||
- | 1 Piece(s) | 11 Day(s) or more | 2HL | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | - | 3 ～ 4 | 4.5 ～ 495.5 | 6 ～ 491.5 | Degreasing | ||
- | 1 Piece(s) | 11 Day(s) or more | 2HL | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | 3 ～ 10 | - | - | 4.5 ～ 495.5 | 6 ～ 491.5 | Degreasing | ||
- | 1 Piece(s) | 11 Day(s) or more | 2HL | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | 3 | - | 4.5 ～ 495.5 | 6 ～ 491.5 | Degreasing | ||
- | 1 Piece(s) | 11 Day(s) or more | 4H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | - | 3 ～ 4 | 6 ～ 491.5 | 6 ～ 491.5 | Degreasing | ||
- | 1 Piece(s) | 11 Day(s) or more | 4H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | 3 ～ 10 | - | - | 6 ～ 491.5 | 6 ～ 491.5 | Degreasing | ||
- | 1 Piece(s) | 11 Day(s) or more | 4H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | 3 | - | 6 ～ 491.5 | 6 ～ 491.5 | Degreasing | ||
- | 1 Piece(s) | 11 Day(s) or more | 6H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | - | 3 ～ 4 | 6 ～ 245.5 | 6 ～ 491.5 | Degreasing | ||
- | 1 Piece(s) | 11 Day(s) or more | 6H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | 3 ～ 10 | - | - | 6 ～ 245.5 | 6 ～ 491.5 | Degreasing | ||
- | 1 Piece(s) | 11 Day(s) or more | 6H | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | 3 | - | 6 ～ 245.5 | 6 ～ 491.5 | Degreasing | ||
- | 1 Piece(s) | 7 Day(s) or more | No Drilling Alteration | 20 ～ 500 | 20 ～ 500 | 1 ～ 30 | - | - | - | - | - | Degreasing |
| Part Number |
|---|
Loading...
Basic Information
| Material | Fluororesin (Fluoropolymer, PTFE) | Environmental Compliance | RoHS compliant (10 substances) | Grade | Standard |
|---|---|---|---|---|---|
| Color | White/Translucent White | Finishing Method | Circular Saw Cutting | Material Name | Fluororesin |
Specification/Dimensions
-
Hole Drilling
-
Length, A Dimension(mm)
-
Width, B Dimension(mm)
-
Plate Thickness, T Dimension(mm)
-
Through Hole, Bolt Nominal Diameter
-
Counterbore Hole, Bolt Nominal Diameter
-
Threaded Insert, Bolt Nominal Diameter
-
A Side Pitch, F Dimension(mm)
-
B Side Pitch, G Dimension(mm)
-
Cleaning Method
- Degreasing
- Precision Cleaning
-
type
- SH-PTFE
- SH-PTFE□H
- SL-PTFE
- SL-PTFE□H
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 7 Day(s) or Less
- 11 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
Tech Support
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
Not a MISUMI customer yet? Register & enjoy 50% off your 1st order!* (*T&C apply.)
- 7 Million Products
- 2,000 Brands
- Free CAD downloads
- Quote/order any time
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
