[Clean & Pack]Flexible Fluororesin Tubes
![[Clean & Pack]Flexible Fluororesin Tubes](http://my.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110311035449_002.jpg?$product_main$)
Part Number
Configured Part Number is shown.
| Type | [M] Material | Cleaning Method | |||
| Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | ||
| SL-PUFN | Fluororesin (PFA) | Degreasing | General environment | Single Packaging | General environment |
| SH-PUFN | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | |
[ ! ] See the
details of degreasing and precision cleaning shown at the bottom of the specification table.Specification Table
| Part Number | — | Length |
| SL-PUFN6 | — | 1000 |
| Part Number | L Selection (mm) | I.D. d (mm) | Min. Bending Radius (mm) [ ! ] | O.D. Accuracy (mm) | Max. Operating Pressure (MPa) | Burst Pressure (MPa) | Mass (kg/m) | |
| Type | Outer Dia. D (mm) | |||||||
| SL-PUFN SH-PUFN | 6 | 300 | 4 | 10 | ±0.1 | 1.7 | 7 | 0.034 |
| 500 | ||||||||
| 1000 | ||||||||
| 8 | 300 | 6 | 10 | 1.1 | 4.5 | 0.047 | ||
| 500 | ||||||||
| 1000 | ||||||||
| 10 | 300 | 8 | 15 | 0.8 | 3.5 | 0.061 | ||
| 500 | ||||||||
| 1000 | ||||||||
| 12 | 300 | 10 | 15 | 0.7 | 3 | 0.074 | ||
| 500 | ||||||||
| 1000 | ||||||||
[!] O.D. accuracy is the value of straight parts at both ends. [!] Maximum operating pressure and burst pressure shown are values at ambient temperature.
| Type | SL-PUFN/SH-PUFN | ||
| Material | Fluororesin | ||
| Fluid specifications | Air | Water | Vacuum |
| Operating Temperature Range | -65 to 260°C | ||
| Burst Pressure | Depends on size. Refer to specification table | ||
| Max. Operating Pressure | Depends on size. Refer to specification table | ||
| Operating Vacuum Level | — | -100 kPa | |
| Features | ·Excels in heat and low temperature resistance. ·Inert to most of corrosive gases, chemicals and solvents. ·Highly weather resistant, and does not deteriorate with time. · Incombustible. No toxic substances released. | ||
Cleaning Process· Degreasing (Part Number: SL-□□)
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 IPA Cleaning |  |  Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | |  Single Packing |
Working Environment: General environment | Working Environment: Class 1,000 | Working Environment: Class 10 | ||||||
|---|---|---|---|---|---|---|---|---|
IPA Cleaning | | Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | | Use nitrogen blow | |  Degassing double packing |

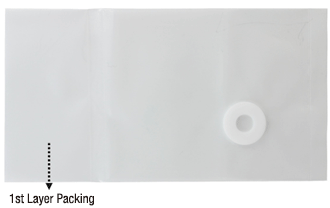

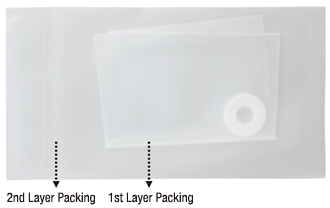

Packaging ExampleDegreasing (Part Number: SL-□□) | Precision Cleaning (Part Number: SH-□□) [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case and Process |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Removal of organic stains | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Removal of organic stains Removal of contamination and dusts | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | O.D. (Ø) | Environmentally Friendly | I.D. (Ø) | Properties / applications | Outer Diameter [Category] | I.D. [Category] | Min. Bend Radius (mm) | Cleaning Method | Length L (mm) | Max. Operating Pressure (Air) (MPa) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 1,012.09 | 1 Piece(s) | 8 Day(s) or more | 6 | RoHS compliant (10 substances) | 4 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Precision Cleaning | 1000 | 1.7 | ||
MYR 420.06 | 1 Piece(s) | 6 Day(s) or more | 6 | RoHS compliant (10 substances) | 4 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Precision Cleaning | 300 | 1.7 | ||
MYR 559.58 | 1 Piece(s) | 6 Day(s) or more | 6 | RoHS non-compliant | 4 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Precision Cleaning | 500 | 1.7 | ||
MYR 1,108.98 | 1 Piece(s) | 8 Day(s) or more | 8 | RoHS compliant (10 substances) | 6 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Precision Cleaning | 1000 | 1.1 | ||
MYR 452.16 | 1 Piece(s) | 6 Day(s) or more | 8 | RoHS compliant (10 substances) | 6 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Precision Cleaning | 300 | 1.1 | ||
MYR 602.97 | 1 Piece(s) | 6 Day(s) or more | 8 | RoHS non-compliant | 6 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Precision Cleaning | 500 | 1.1 | ||
MYR 1,270.44 | 1 Piece(s) | 8 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Precision Cleaning | 1000 | 0.8 | ||
MYR 505.97 | 1 Piece(s) | 8 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Precision Cleaning | 300 | 0.8 | ||
MYR 688.87 | 1 Piece(s) | 6 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Precision Cleaning | 500 | 0.8 | ||
MYR 1,378.28 | 1 Piece(s) | 8 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Precision Cleaning | 1000 | 0.7 | ||
MYR 549.55 | 1 Piece(s) | 6 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Precision Cleaning | 300 | 0.7 | ||
MYR 732.04 | 1 Piece(s) | 6 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Precision Cleaning | 500 | 0.7 | ||
MYR 1,007.89 | 1 Piece(s) | 8 Day(s) or more | 6 | RoHS compliant (10 substances) | 4 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Degreasing | 1000 | 1.7 | ||
MYR 417.94 | 1 Piece(s) | 6 Day(s) or more | 6 | RoHS compliant (10 substances) | 4 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Degreasing | 300 | 1.7 | ||
MYR 557.51 | 1 Piece(s) | 6 Day(s) or more | 6 | RoHS non-compliant | 4 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Degreasing | 500 | 1.7 | ||
MYR 1,104.84 | 1 Piece(s) | 8 Day(s) or more | 8 | RoHS compliant (10 substances) | 6 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Degreasing | 1000 | 1.1 | ||
MYR 450.09 | 1 Piece(s) | 6 Day(s) or more | 8 | RoHS compliant (10 substances) | 6 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Degreasing | 300 | 1.1 | ||
MYR 600.84 | 1 Piece(s) | 6 Day(s) or more | 8 | RoHS non-compliant | 6 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Degreasing | 500 | 1.1 | ||
MYR 1,258.06 | 1 Piece(s) | 8 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Degreasing | 1000 | 0.8 | ||
MYR 503.90 | 1 Piece(s) | 8 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Degreasing | 300 | 0.8 | ||
MYR 686.74 | 1 Piece(s) | 6 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Degreasing | 500 | 0.8 | ||
MYR 1,360.14 | 1 Piece(s) | 8 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Degreasing | 1000 | 0.7 | ||
MYR 547.43 | 1 Piece(s) | 6 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Degreasing | 300 | 0.7 | ||
MYR 729.97 | 1 Piece(s) | 6 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Degreasing | 500 | 0.7 |
Loading...
Basic Information
| Material | Fluororesin | Applicable Fluid | Water / Air | Tube Color | C (Transparent) |
|---|---|---|---|---|---|
| Type | Straight | Cutting Service Availability | No | Material: Fluororesin | Fluororesin (PFA) |
| Operating Temperature Range (when using air)(°C) | -65::260 | Material Certificate | Available | Material Certificate: Material | Fluororesin (PFA) |
Specification/Dimensions
-
O.D.(Ø)
-
Environmentally Friendly
- RoHS compliant (10 substances)
- RoHS non-compliant
-
I.D.(Ø)
-
Properties / applications
-
Outer Diameter [Category]
-
I.D. [Category]
-
Cleaning Method
- Degreasing
- Precision Cleaning
-
Length L(mm)
- 300
- 500
- 1000
-
Max. Operating Pressure (Air)(MPa)
-
type
- SH-PUFN
- SL-PUFN
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 6 Day(s) or Less
- 8 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
