[Clean & Pack]Pusher Pins - Straight

MISUMI

There is no discoloration or dimensional change due to cleaning.

Part Number

Configured Part Number is shown.

Drawing/Specifications
3D Preview
Part Numbers
More Information

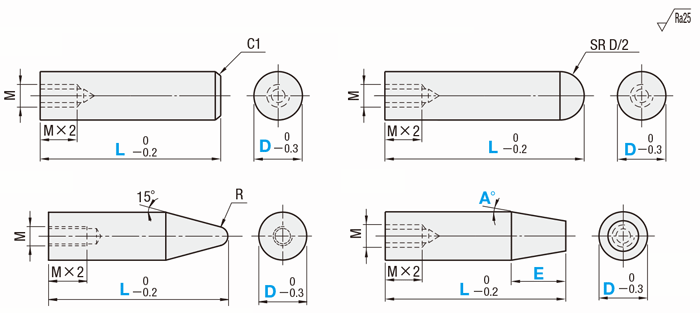

● Flat

● Sphere

● Taper R

● Tapered

[!] D－2EtanA ≥ 1.0 (Tip Diameter ø1.0 or more)
[ ! ] When L < 20, the thread length is M × 1.5.

Type				[M] Material	Operating Ambient Temperature	Cleaning Method
Flat	Sphere	Taper R	Tapered	[M] Material	Operating Ambient Temperature	Cleaning Method	Cleaning Environment	Packaging Type	Packing Environment
SL-PEPFJ	SL-PEPRJ	SL-PEPQJ	SL-PEPTJ	PEEK (Natural Ivory)	-50 to 250°C	Degreasing	General environment	Single packing	General environment
SH-PEPFJ	SH-PEPRJ	SH-PEPQJ	SH-PEPTJ	PEEK (Natural Ivory)	-50 to 250°C	Precision cleaning	Class 1,000	Degassing double packing	Class 10

[!] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the details of degreasing and precision cleaning shown at the bottom of the

specification table.

Specification Table

Part Number	—	L	—	E	—	A
SL-PEPFJ10	—	40.0
SH-PEPTJ12	—	40.0	—	E10	—	A5

Part Number				L 0.5 mm Increments		M	R
Type			D	Flat, Sphere	Taper R	(Coarse)	R
Flat	Sphere	Taper R	6	10.0 to 100.0	14.0 to 100.0	3	1
SL-PEPFJ	SL-PEPRJ	SL-PEPQJ	8	12.0 to 100.0	18.0 to 100.0	4	1.5
SH-PEPFJ	SH-PEPRJ	SH-PEPQJ	10	13.0 to 100.0	20.0 to 100.0	4	2
			12	16.0 to 100.0	26.0 to 100.0	5
			15	19.0 to 100.0	34.0 to 100.0	6
			20	20.0 to 100.0	40.0 to 100.0		3
			25	20.0 to 100.0	50.0 to 100.0		3

Part Number		L	E	A	M
Type	D	0.5 mm Increments	0.5 mm Increments	1° Increments	(Coarse)
Tapered	6	14.0 to 100.0	5.0 ≤ E ≤ 40 and E ≤ L−M × 3	1 to 45	3
SL-PEPTJ	8	18.0 to 100.0			4
SH-PEPTJ	10	20.0 to 100.0			4
	12				5
	15				6
	20
	25

Alterations

Alterations
Code

Alteration Details

Application Conditions

Ordering Example

HSC

Threaded Insert

Adds threaded insert to M part.
D6:M3 D8 to 10:M4 D12:M5 D15 to 25:M6

SL-PEPFJ10-40.0-HSC

Wrench Flats Alteration

SC: 1 mm Increments
[ ! ]SC+ℓ+D/2 ≤ L [ ! ]SC > M × 3

D	W	ℓ
6	5	8
8	7
10	8
12	10	10
15	13
20	17
25	22

SL-PEPFJ10-40.0-SC15

Cleaning Process
· Degreasing (Part Number: SL-□□)

Working Environment: General environment
IPA Cleaning		Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water)		Use clean air blow		Single Packing

· Precision cleaning (Part Number: SH-□□)

Working Environment: General environment				Working Environment: Class 1,000				Working Environment: Class 10
IPA Cleaning		Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water)		Use clean air blow		Use nitrogen blow		Degassing double packing

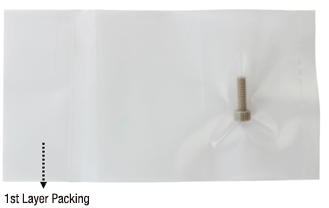

Packaging Example

Degreasing (Part Number: SL-□□)

Precision Cleaning (Part Number: SH-□□)

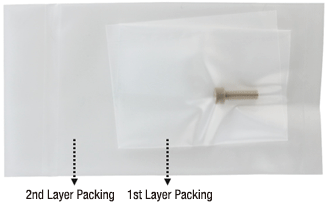

[ ! ] Both the first and second layer packaging are degassed.

Cleaning Effectiveness / Recommended Environment for Use

Cleaning Method	Product Part Number	Packaging Type	Effects Compared to Uncleaned Product	Environment (Standard)	Use Case and Process
Degreasing	SL-□□	Anti-rust packing	Removal of organic stains	General environment	Regular assembly process
Degreasing	SL-□□	Anti-rust packing	Removal of organic stains	General environment	Post battery assembly process
Precision cleaning	SH-□□	Degassing double packing	Removal of organic stains Removal of contamination and dusts	Clean environment (Class 10 to 1,000)	Battery assembly process
					LCD-related post assembly process
					In-vehicle camera assembly process

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

Part Number
SH-PEPFJ6-[10-100/0.5]
SH-PEPFJ8-[12-100/0.5]
SH-PEPFJ10-[13-100/0.5]
SH-PEPFJ12-[16-100/0.5]
SH-PEPFJ15-[19-100/0.5]
SH-PEPFJ20-[20-100/0.5]
SH-PEPFJ25-[20-100/0.5]
SH-PEPQJ6-[14-100/0.5]
SH-PEPQJ8-[18-100/0.5]
SH-PEPQJ10-[20-100/0.5]
SH-PEPQJ12-[26-100/0.5]
SH-PEPQJ15-[34-100/0.5]
SH-PEPQJ20-[40-100/0.5]
SH-PEPQJ25-[50-100/0.5]
SH-PEPRJ6-[10-100/0.5]
SH-PEPRJ8-[12-100/0.5]
SH-PEPRJ10-[13-100/0.5]
SH-PEPRJ12-[16-100/0.5]
SH-PEPRJ15-[19-100/0.5]
SH-PEPRJ20-[20-100/0.5]
SH-PEPRJ25-[20-100/0.5]
SH-PEPTJ6-[14-100/0.5]-E[5-40/0.5]-A[1-45/1]
SH-PEPTJ8-[18-100/0.5]-E[5-40/0.5]-A[1-45/1]
SH-PEPTJ10-[20-100/0.5]-E[5-40/0.5]-A[1-45/1]
SH-PEPTJ12-[20-100/0.5]-E[5-40/0.5]-A[1-45/1]
SH-PEPTJ15-[20-100/0.5]-E[5-40/0.5]-A[1-45/1]
SH-PEPTJ20-[20-100/0.5]-E[5-40/0.5]-A[1-45/1]
SH-PEPTJ25-[20-100/0.5]-E[5-40/0.5]-A[1-45/1]
SL-PEPFJ6-[10-100/0.5]
SL-PEPFJ8-[12-100/0.5]
SL-PEPFJ10-[13-100/0.5]
SL-PEPFJ12-[16-100/0.5]
SL-PEPFJ15-[19-100/0.5]
SL-PEPFJ20-[20-100/0.5]
SL-PEPFJ25-[20-100/0.5]
SL-PEPQJ6-[14-100/0.5]
SL-PEPQJ8-[18-100/0.5]
SL-PEPQJ10-[20-100/0.5]
SL-PEPQJ12-[26-100/0.5]
SL-PEPQJ15-[34-100/0.5]
SL-PEPQJ20-[40-100/0.5]
SL-PEPQJ25-[50-100/0.5]
SL-PEPRJ6-[10-100/0.5]
SL-PEPRJ8-[12-100/0.5]
SL-PEPRJ10-[13-100/0.5]
SL-PEPRJ12-[16-100/0.5]
SL-PEPRJ15-[19-100/0.5]
SL-PEPRJ20-[20-100/0.5]
SL-PEPRJ25-[20-100/0.5]
SL-PEPTJ6-[14-100/0.5]-E[5-40/0.5]-A[1-45/1]
SL-PEPTJ8-[18-100/0.5]-E[5-40/0.5]-A[1-45/1]
SL-PEPTJ10-[20-100/0.5]-E[5-40/0.5]-A[1-45/1]
SL-PEPTJ12-[20-100/0.5]-E[5-40/0.5]-A[1-45/1]
SL-PEPTJ15-[20-100/0.5]-E[5-40/0.5]-A[1-45/1]
SL-PEPTJ20-[20-100/0.5]-E[5-40/0.5]-A[1-45/1]
SL-PEPTJ25-[20-100/0.5]-E[5-40/0.5]-A[1-45/1]

Standard Unit Price	Minimum order quantity	Days to Ship	Insertion Guide Tip Type	Locating Side Outer Dia. P (Ø) (mm)	Mounting Side Outer Dia. D (mm)	Cleaning Method	Taper Length E (mm)	A (°)	L (mm)
-	1 Piece(s)	8 Day(s) or more	Flat	6	6	Precision Cleaning	-	-	10 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	8	8	Precision Cleaning	-	-	12 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	10	10	Precision Cleaning	-	-	13 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	12	12	Precision Cleaning	-	-	16 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	15	15	Precision Cleaning	-	-	19 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	20	20	Precision Cleaning	-	-	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	25	25	Precision Cleaning	-	-	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	6	6	Precision Cleaning	-	-	14 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	8	8	Precision Cleaning	-	-	18 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	10	10	Precision Cleaning	-	-	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	12	12	Precision Cleaning	-	-	26 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	15	15	Precision Cleaning	-	-	34 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	20	20	Precision Cleaning	-	-	40 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	25	25	Precision Cleaning	-	-	50 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	6	6	Precision Cleaning	-	-	10 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	8	8	Precision Cleaning	-	-	12 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	10	10	Precision Cleaning	-	-	13 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	12	12	Precision Cleaning	-	-	16 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	15	15	Precision Cleaning	-	-	19 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	20	20	Precision Cleaning	-	-	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	25	25	Precision Cleaning	-	-	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	6	6	Precision Cleaning	5 ～ 40	1 ～ 45	14 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	8	8	Precision Cleaning	5 ～ 40	1 ～ 45	18 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	10	10	Precision Cleaning	5 ～ 40	1 ～ 45	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	12	12	Precision Cleaning	5 ～ 40	1 ～ 45	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	15	15	Precision Cleaning	5 ～ 40	1 ～ 45	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	20	20	Precision Cleaning	5 ～ 40	1 ～ 45	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	25	25	Precision Cleaning	5 ～ 40	1 ～ 45	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	6	6	Degreasing	-	-	10 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	8	8	Degreasing	-	-	12 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	10	10	Degreasing	-	-	13 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	12	12	Degreasing	-	-	16 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	15	15	Degreasing	-	-	19 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	20	20	Degreasing	-	-	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Flat	25	25	Degreasing	-	-	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	6	6	Degreasing	-	-	14 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	8	8	Degreasing	-	-	18 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	10	10	Degreasing	-	-	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	12	12	Degreasing	-	-	26 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	15	15	Degreasing	-	-	34 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	20	20	Degreasing	-	-	40 ～ 100
-	1 Piece(s)	8 Day(s) or more	Taper R	25	25	Degreasing	-	-	50 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	6	6	Degreasing	-	-	10 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	8	8	Degreasing	-	-	12 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	10	10	Degreasing	-	-	13 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	12	12	Degreasing	-	-	16 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	15	15	Degreasing	-	-	19 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	20	20	Degreasing	-	-	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Spherical	25	25	Degreasing	-	-	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	6	6	Degreasing	5 ～ 40	1 ～ 45	14 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	8	8	Degreasing	5 ～ 40	1 ～ 45	18 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	10	10	Degreasing	5 ～ 40	1 ～ 45	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	12	12	Degreasing	5 ～ 40	1 ～ 45	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	15	15	Degreasing	5 ～ 40	1 ～ 45	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	20	20	Degreasing	5 ～ 40	1 ～ 45	20 ～ 100
-	1 Piece(s)	8 Day(s) or more	Tapered	25	25	Degreasing	5 ～ 40	1 ～ 45	20 ～ 100

Part Number

Part Number	Standard Unit Price	Minimum order quantity	Volume Discount	Days to Ship	Insertion Guide Tip Type	Locating Side Outer Dia. P (Ø) (mm)	Mounting Side Outer Dia. D (mm)	Cleaning Method	Taper Length E (mm)	A (°)	L (mm)

App. Example

Basic Information

Basic Shape	Straight	Environmentally friendly	RoHS Compliant (10 Substances)	Characteristics/Applications	Clean Washed
Insertion Guide Tip Shape	Round	Insertion Guide Specifications	Not Provided	Mounting Side Shape	Tapped
Surface Treatment	Not Provided	Heat Treatment	Not Provided	Material	PEEK (Natural Ivory)
Locating Side O.D. Tolerance	0/-0.3	Mounting Side Tolerance	0/-0.3	Material Certificate	Available
Material Certificate: Materials	PEEK (Natural Ivory)

Configure

56 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Insertion Guide Tip Type
- Tapered
- Taper R
- Spherical
- Flat
Clear
Locating Side Outer Dia. P (Ø)(mm)
6

8

10

12

15

20

25
Clear
Mounting Side Outer Dia. D(mm)
6

8

10

12

15

20

25
Clear
Cleaning Method
- Degreasing
- Precision Cleaning
Clear
Taper Length E(mm)
[5-40/0.5mm Unit(s)]
Clear
A(°)
[1-45/1° Unit(s)]
Clear
L(mm)
[10-100/0.5mm Unit(s)]
Clear
type
- SH-PEPFJ
- SH-PEPQJ
- SH-PEPRJ
- SH-PEPTJ
- SL-PEPFJ
- SL-PEPQJ
- SL-PEPRJ
- SL-PEPTJ
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

8 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Additional Products in this Category

Tech Support

: Technical Inquiry

Top of the page

Payment Method

Credit Card
Bank Transfer

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm

Tel: (60) 3 7890 6399

Inquiry

Not a MISUMI customer yet? Register & enjoy 50% off your 1st order!* (*T&C apply.)

7 Million Products
2,000 Brands
Free CAD downloads
Quote/order any time

All Categories

Categories

Search by Application

Brands

How can we improve?

[Clean & Pack]Pusher Pins - Straight

2D/3D CAD ?

2D CAD Data with Dim. Fixed

Specification Table

Alterations

Part Number

App. Example

Basic Information

Configure

Specification/Dimensions

Insertion Guide Tip Type

Locating Side Outer Dia. P (Ø)(mm)

Mounting Side Outer Dia. D(mm)

Cleaning Method

Taper Length E(mm)

A(°)

L(mm)

type

CAD

Days to Ship

Specify Alterations

Additional Products in this Category

Tech Support

Payment Method

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm
