[Clean & Pack]Locating Pin - Plastic, Large Head, Tip Shape Selectable, Tapped
![[Clean & Pack]Locating Pin - Plastic, Large Head, Tip Shape Selectable, Tapped](http://my.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110311036799_001.jpg?$product_main$)
There is no discoloration or dimensional change due to cleaning.
Part Number
Configured Part Number is shown.
When D < 3
a = 0.5
d = D - 0.1
When D ≥ 3
a = 1.0
d = D - 0.2
[ ! ] Relief dimensions are reference values.
[ ! ] The outer diameter tolerance is the result of measurement at room temperature.
| Tip Shape Selectable | |||
| Tapered |  | Sphere |  |
| Flat |  | ||
| Type | Fixed Part | Head Shape | [M] Material | Operating Ambient Temperature | Cleaning Method | ||||||
| P Configurable | P, L, B Configurable | ||||||||||
| Round | Diamond | Round | Diamond | Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | ||||
| SL-JKP | SL-JKPD | SL-FKP | SL-FKPD | Y (Tapped) | A (Tapered) FA (Flat) Q (Sphere) | PEEK (Natural Ivory) | −50 to 250°C | Degreasing | General environment | Single packing | General environment |
| SH-JKP | SH-JKPD | SH-FKP | SH-FKPD | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | ||||
[!] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the details of degreasing and precision cleaning shown at the bottom of the
specification table.Specification Table
| Part Number | — | P | — | L | — | B | ||||||
| Type | Fixed Part | Head Shape | D | |||||||||
| SL-FKP | Y | Q | 10 | — | P12.00 | — | L12 | — | B7.0 | |||
| Part Number | P | L | B | C | m | M (Coarse) | ℓ2 | (W) | |||||
| Type | Fixed Part | Head Shape | D | D Dimension Tolerance | 0.01 mm Increments | ||||||||
| g6 | |||||||||||||
| (Round) | (Diamond) | Y (Tapped) | A (Tapered) | 6 | -0.004 | 6.50 to 10.00 | 10 | 8 | 1 | 3 | M3 | 5 | 3 |
| SL-JKP | SL-JKPD | FA (Flat) | -0.012 | ||||||||||
| SH-JKP | SH-JKPD | Q (Sphere) | 8 | -0.005 | 9.00 to 13.00 | 15 | 8 | 1.5 | 4 | M5 | 8 | 3.5 | |
| -0.014 | |||||||||||||
| 10 | -0.005 | 11.00 to 15.00 | 15 | 10 | 2 | 4 | M5 | 8 | 4 | ||||
| -0.014 | |||||||||||||
| Part Number | P | L | B | C | m | M (Coarse) | ℓ2 | (W) | |||||
| 1 mm Increments | 0.1 mm Increments | ||||||||||||
| Type | Fixed Part | Head Shape | D | D Dimension Tolerance | 0.01 mm Increments | ||||||||
| g6 | |||||||||||||
| (Round) | (Diamond) | Y (Tapped) | A (Tapered) | 6 | -0.004 | 6.50 to 10.00 | 6 to 12 | 2.0 to 12.0 | 1 | 3 | M3 | 5 | 3 |
| SL-FKP | SL-FKPD | FA (Flat) | -0.012 | ||||||||||
| SH-FKP | SH-FKPD | Q (Sphere) | 8 | -0.005 | 9.00 to 13.00 | 8 to 16 | 2.0 (3.0)Up to 15.0 | 1.5 | 4 | M5 | 8 | 3.5 | |
| -0.014 | |||||||||||||
| 10 | -0.005 | 11.00 to 15.00 | 10 to 20 | 3.0 (4.0)Up to 20.0 (15.0) | 2 | 4 | M5 | 8 | 4 | ||||
| -0.014 | |||||||||||||
Alterations
| Alterations Code | Alteration Details | Application Conditions | Ordering Example |
| HSC | Threaded Insert | Adds a threaded insert on Tapped. D6: M3 D8·10: Insert M5 Threaded Insert | SL-JKPDYA6-8.00-HSC |
Cleaning Process· Degreasing (Part Number: SL-□□)
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 IPA Cleaning |  |  Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | |  Single Packing |
Working Environment: General environment | Working Environment: Class 1,000 | Working Environment: Class 10 | ||||||
|---|---|---|---|---|---|---|---|---|
IPA Cleaning | | Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | | Use nitrogen blow | |  Degassing double packing |

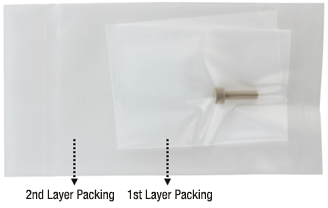

Packaging ExampleDegreasing (Part Number: SL-□□) | Precision Cleaning (Part Number: SH-□□) [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case and Process |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Removal of organic stains | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Removal of organic stains Removal of contamination and dusts | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| SH-FKPYQ6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1] |
| SH-FKPYQ8-P[9-13/0.01]-L[8-16/1]-B[2-15/0.1] |
| SH-FKPYQ10-P[11-15/0.01]-L[10-20/1]-B[3-20/0.1] |
| SH-JKPYQ6-[6.5-10/0.01] |
| SH-JKPYQ8-[9-13/0.01] |
| SH-JKPYQ10-[11-15/0.01] |
| SL-FKPYQ6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1] |
| SL-FKPYQ8-P[9-13/0.01]-L[8-16/1]-B[2-15/0.1] |
| SL-FKPYQ10-P[11-15/0.01]-L[10-20/1]-B[3-20/0.1] |
| SL-JKPYQ6-[6.5-10/0.01] |
| SL-JKPYQ8-[9-13/0.01] |
| SL-JKPYQ10-[11-15/0.01] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Locating Side Outer Dia. P (Ø) (mm) | Mounting Side Outer Dia. D (mm) | Cleaning Method | Mounting Section Length L (mm) | Positioning Part Length B (mm) |
|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 9 Day(s) or more | 6.5 ～ 10 | 6 | Precision Cleaning | 6 ～ 12 | 2 ～ 12 | ||
- | 1 Piece(s) | 9 Day(s) or more | 9 ～ 13 | 8 | Precision Cleaning | 8 ～ 16 | 2 ～ 15 | ||
- | 1 Piece(s) | 9 Day(s) or more | 11 ～ 15 | 10 | Precision Cleaning | 10 ～ 20 | 3 ～ 20 | ||
- | 1 Piece(s) | 9 Day(s) or more | 6.5 ～ 10 | 6 | Precision Cleaning | 10 | 8 | ||
- | 1 Piece(s) | 9 Day(s) or more | 9 ～ 13 | 8 | Precision Cleaning | 15 | 8 | ||
- | 1 Piece(s) | 9 Day(s) or more | 11 ～ 15 | 10 | Precision Cleaning | 15 | 10 | ||
- | 1 Piece(s) | 9 Day(s) or more | 6.5 ～ 10 | 6 | Degreasing | 6 ～ 12 | 2 ～ 12 | ||
- | 1 Piece(s) | 9 Day(s) or more | 9 ～ 13 | 8 | Degreasing | 8 ～ 16 | 2 ～ 15 | ||
- | 1 Piece(s) | 9 Day(s) or more | 11 ～ 15 | 10 | Degreasing | 10 ～ 20 | 3 ～ 20 | ||
- | 1 Piece(s) | 9 Day(s) or more | 6.5 ～ 10 | 6 | Degreasing | 10 | 8 | ||
- | 1 Piece(s) | 9 Day(s) or more | 9 ～ 13 | 8 | Degreasing | 15 | 8 | ||
- | 1 Piece(s) | 9 Day(s) or more | 11 ～ 15 | 10 | Degreasing | 15 | 10 |
| Part Number |
|---|
Loading...
Specifications/Overview
Basic Information
| Basic Shape | Large Head | Environmentally friendly | RoHS Compliant (10 Substances) | Characteristics/Applications | Clean Washed |
|---|---|---|---|---|---|
| Insertion Guide Tip Shape | Round | Insertion Guide Tip Type | Spherical | Insertion Guide Specifications | Not Provided |
| Mounting Side Shape | Tapped | Surface Treatment | Not Provided | Heat Treatment | Not Provided |
| Material | PEEK (Natural Ivory) | Locating Side O.D. Tolerance | 0/-0.05 | Mounting Side Tolerance | g6 |
| Material Certificate | Available | Material Certificate: Materials | PEEK (Natural Ivory) |
Specification/Dimensions
-
Locating Side Outer Dia. P (Ø)(mm)
-
Mounting Side Outer Dia. D(mm)
-
Cleaning Method
- Degreasing
- Precision Cleaning
-
Mounting Section Length L(mm)
-
Positioning Part Length B(mm)
-
type
- SH-FKPYQ
- SH-JKPYQ
- SL-FKPYQ
- SL-JKPYQ
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 9 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
