BH MINI Series Earth Leakage Circuit Breaker For Power Distribution Board
Since it is a plug-in for the power supply side, it is one-touch installation, shortening the work time for a power outage
Japanese Only
Part Number
Configured Part Number is shown.
Specifications of Earth Leakage Breaker BH MINI Series for Power Distribution Boards

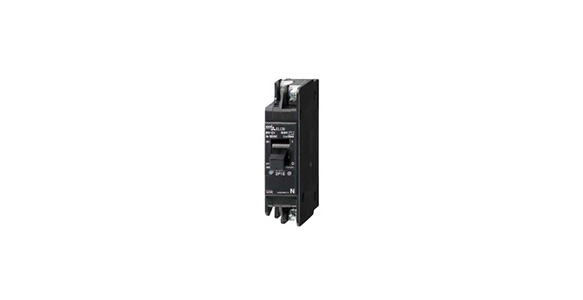

BV-C1 external appearance

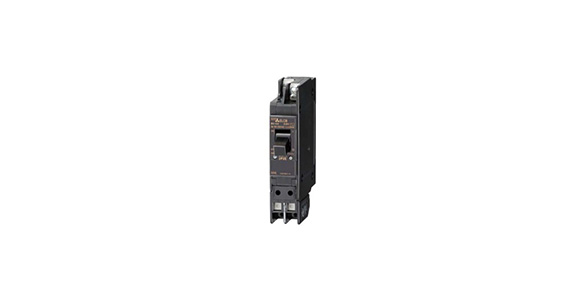

BV-C2 QT external appearance
| Frame A | 50 | |||
|---|---|---|---|---|
| Type Name | BV-C1 | BV-C2 | ||
| Number of Poles and Elements | 2P1E | 2P2E | ||
| Rated Current(Standard Ambient Temperature 40°C) A | 15 20 30 | |||
| Rated Voltage AC V | 100 | 100 to 200 (240) | ||
| Rated Sensitivity Current mA | 15 30 | |||
| Operating Time Within s | 0.1 | |||
| Electrical Leakage Display Method | Mechanical Button | |||
| Rated Breaking Capacity JIS C 8201-2-2 Ann.2 kA | AC | 100 V | 5 | 5 |
| 100/200 V | - | 5 | ||
| 200 V | - | 2.5 | ||
| Connection | Power Supply Side | Connection Method | Screw Terminal | |
| Specifications | Terminal screws: P pan screws M5 × 10 Compatible crimp terminal: 2 mm2: R2-5 5 mm2: R5.5-5 8 mm2: 8-5S (NTM Co.) 8-5SC-9 (JST Co.) Maximum conductor strip connection: width 10 mm or less, thickness 2.3 mm or less | |||
| Load Side | Connection Method | Screw terminal, and quick-connect terminal (QT) | ||
| Specifications | Applicable wire size: Single wire ø1.6 to ø2.6, and stranded wire 2 to 8 mm2 * Use crimp terminal for 8 mm2 wire. Applicable rod crimp terminal: When using stranded wires for a quick-connect terminal, use the rod crimp terminal specified below. 1.25 mm2: TC1.25-20 (NTM Co.) 2.0 mm2: TC2-20 (NTM Co.) 3.5, 5.5 mm2: TC5.5-15ST (NTM Co.) | |||
| Internal Equipment | Alarm switch (AL), auxiliary switch (AX) (*1) | |||
| External Accessories (Sold Separately) | Lock cover (LC), handle cap (HC), mounting plate and mounting tab | |||
| Overcurrent Tripping Method | Thermal-magnetic | |||
| Electrical Appliances and Material Safety Act | Compliant | |||
*1: Either AL or AX (but not both) can be mounted for internal equipment and connected via the load side lead wire pull out method (lead wire length 450 mm). The product is shipped with an internal component built into the main unit.
| Rated Voltage | Applicable Circuit Voltage | Variable Voltage Range in Which Electrical Leakage Protection Function Can Operate |
|---|---|---|
| 100 V | 100 / 110 V | 80 to 121 V |
| 100 to 200 V | 100/110/200/220 V | 80 to 242 V |
| 240 V | 200/220/240 V | 96 to 264 V |
Characteristics

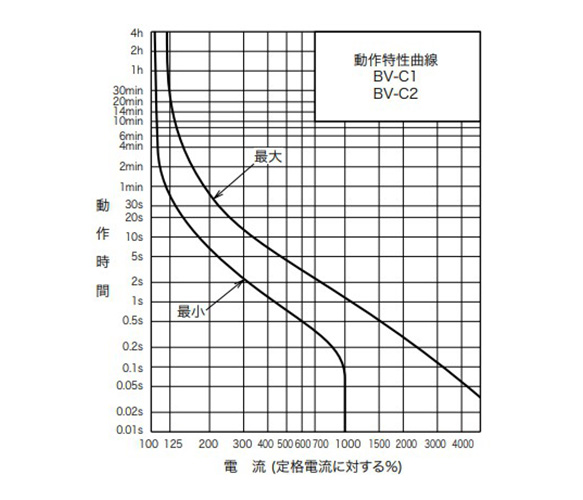

Operating characteristics curve

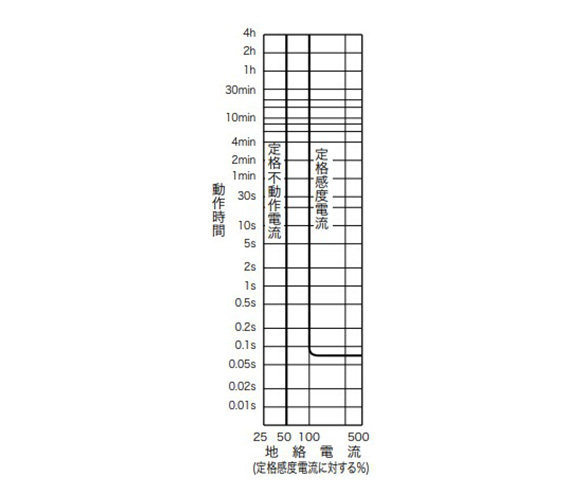

Earth leakage tripping characteristics

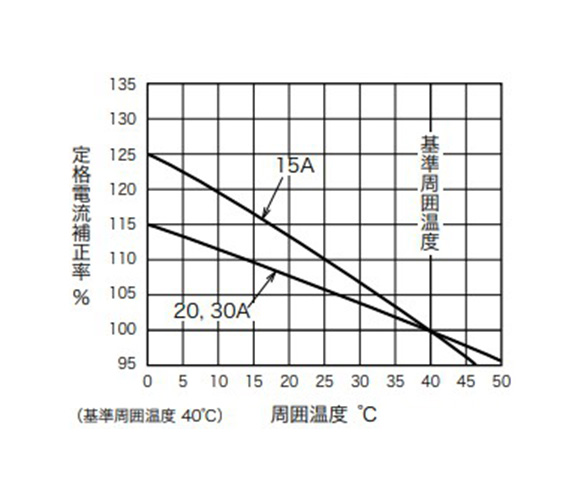

Temperature correction curve

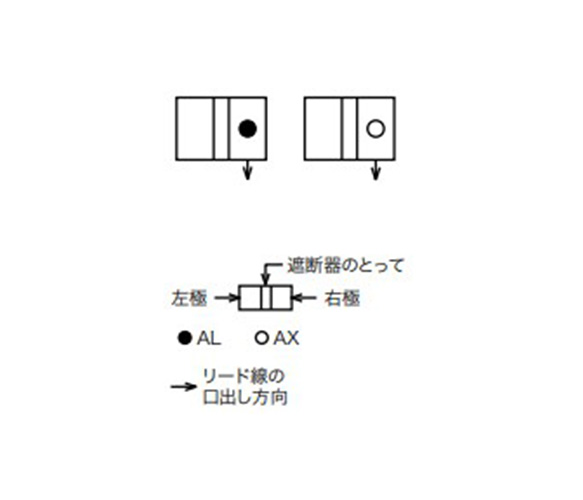

Internal equipment
Drawing

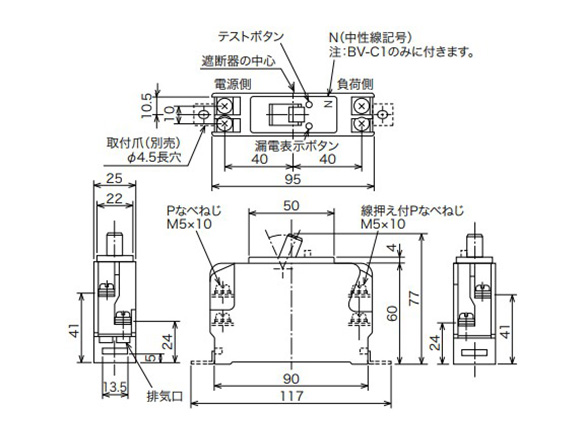

Drawing of Load Side Screw Terminal
(Unit: mm)
Load side terminal (screw terminal)
- Applicable wire size: single wire: ø1.6 to 2.6 (diameter 1.6 to 2.6 mm), stranded wire: 2 to 8 mm2
* Use crimp terminal for 8 mm2wire.
Compatible crimp terminals
- R 2-5 to R 5.5-5
- 8-5S (NTM Co.)
- 8-5SC-9 (JST Co.)
Conductor wire machining drawing maximum conductor strip plate thickness: t 2.3

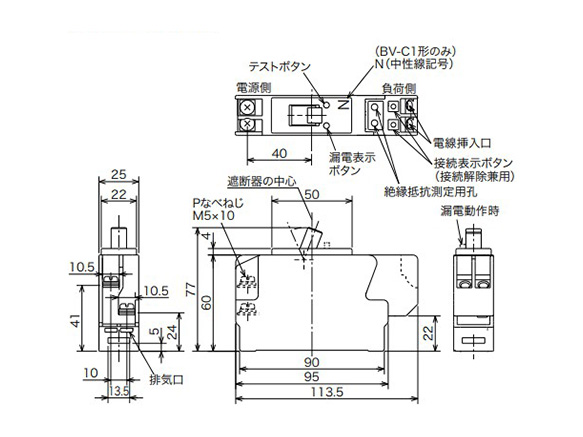

Drawing of Load Side Quick-connect (QT) Terminal
(Unit: mm)
Power supply side terminal (screw terminal)
Compatible crimp terminals
- R 2-5 to R 5.5-5
- 8-5S (NTM Co.)
- 8-5SC-9 (JST Co.)
Load side terminal (quick connect terminal)
Connectible wires: copper single wire ø1.6 (diameter 1.6 mm), ø2.0 (diameter 2.0 mm), ø2.6 (diameter 2.6 mm)
For stranded wires, use the rod crimp terminals below.
- 1.25 mm2: TC1.25-20 (NTM Co.)
- 2.0 mm2: TC2-20 (NTM Co.)
- 3.5 mm2, 5.5 mm2: TC5.5-15ST (NTM Co.)
Conductor wire machining drawing maximum conductor strip plate thickness: t 2.3
*Please refer to the catalog for model numbers not listed above.
| Part Number |
|---|
| BV-C1 20A 100V 30MA |
| BV-C1 30A 100V 30MA |
| BV-C2 15A 100-200V 15MA |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Rated block capacity AC 200 V (kA) | Rated Operating Voltage (V) | Rated Current (A) | rate sensitivity current (mA) |
|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | Quote | - | AC100 | 20 | 30 | ||
- | 1 Piece(s) | Quote | - | AC100 | 30 | 30 | ||
- | 1 Piece(s) | Quote | 2.5 | AC100-200 | 15 | 15 |
| Part Number |
|---|
Loading...
Basic Information
| Ampere frame AF | 50AF | Rated block capacity AC 100 V(kA) | 5 | Number of Poles | 2 |
|---|---|---|---|---|---|
| Mounting Method | Fasten With Screws | Representative Standard | PSE | Dimension height(mm) | 95 |
| Dimension width(mm) | 25 | Dimension depth(mm) | 77 | Connection Method | Surface form |
| Phase display | NA | Power supply connection method | Screw terminal | Load side connection method | Screw terminal |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
