Replacement Blade Insert S (Square) SNMG-N-EX
Part Number
Configured Part Number is shown.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Work Material | Nose Radius | Corner Height Tolerance | Inscribed Circle Tolerance | Hole Availability | Hole Shape | Breaker Availability | Material Type | Dimension S (mm) | Dimension φd (mm) | Detail Nose Radius (mm) | Machining Application ② | Cutting Edge Length (mm) | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 39.84 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 0.4 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC510U | 4.76 | 12.7 | 0.4 | Light to Medium Cutting | 12.7 | Carbide Coating | ||
MYR 39.84 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 0.4 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC520U | 4.76 | 12.7 | 0.4 | Light to Medium Cutting | 12.7 | Carbide Coating | ||
MYR 39.84 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 0.4 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC530U | 4.76 | 12.7 | 0.4 | Light to Medium Cutting | 12.7 | Carbide Coating | ||
MYR 39.84 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 0.8 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC510U | 4.76 | 12.7 | 0.8 | Light to Medium Cutting | 12.7 | Carbide Coating | ||
MYR 39.84 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 0.8 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC520U | 4.76 | 12.7 | 0.8 | Light to Medium Cutting | 12.7 | Carbide Coating | ||
MYR 39.84 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 0.8 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC530U | 4.76 | 12.7 | 0.8 | Light to Medium Cutting | 12.7 | Carbide Coating | ||
MYR 39.84 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 1.2 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC510U | 4.76 | 12.7 | 1.2 | Light to Medium Cutting | 12.7 | Carbide Coating | ||
MYR 39.84 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 1.2 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC520U | 4.76 | 12.7 | 1.2 | Light to Medium Cutting | 12.7 | Carbide Coating | ||
MYR 39.84 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 1.2 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC530U | 4.76 | 12.7 | 1.2 | Light to Medium Cutting | 12.7 | Carbide Coating | ||
MYR 69.97 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 1.2 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC510U | 6.35 | 15.875 | 1.2 | Light to Medium Cutting | 15.875 | Carbide Coating | ||
MYR 69.97 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 1.2 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC520U | 6.35 | 15.875 | 1.2 | Light to Medium Cutting | 15.875 | Carbide Coating | ||
MYR 87.01 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 1.2 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC510U | 6.35 | 19.05 | 1.2 | Light to Medium Cutting | 19.05 | Carbide Coating | ||
MYR 87.01 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | 1.2 | ±0.08～±0.2 | ±0.05～±0.15 | Available | Cylinder State | Both Faces | AC520U | 6.35 | 19.05 | 1.2 | Light to Medium Cutting | 19.05 | Carbide Coating |
| Part Number |
|---|
Loading...
Basic Information
| Shape | S (Square) | Use | Outer Diameter / Inner Diameter | Rake Angle | Negative |
|---|---|---|---|---|---|
| Preferred Hand | No Preferred Hand | Clearance Angle(°) | 0 | Thickness Tolerance | ±0.13 |
| Slot Code | G |

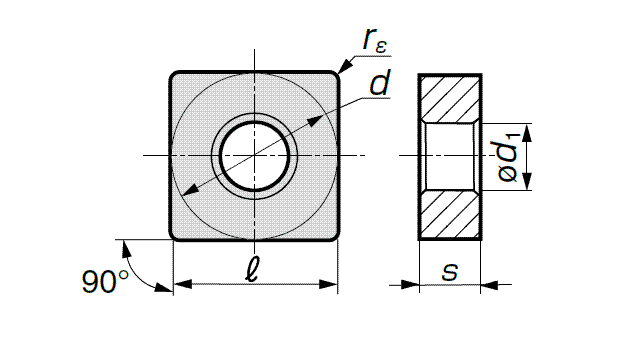

Specification/Dimensions
-
Nose Radius
-
Corner Height Tolerance
- ±0.08 to ±0.2
- ±0.08～±0.2
-
Inscribed Circle Tolerance
- ±0.05 to ±0.15
- ±0.05～±0.15
-
Hole Availability
- Available
- Yes
-
Hole Shape
- Cylinder State
- Cylindrical
-
Breaker Availability
- Both Faces
- Both sides
- No
-
Material Type
-
Dimension S(mm)
-
Dimension φd(mm)
-
Detail Nose Radius(mm)
-
Machining Application ②
- Light to Medium Cutting
- Light to medium cutting
-
type
- SNMG□□□□□□N-EX
-
Work Material
- Steel
- Stainless Steel
- Cast Iron
- Heat-Resistant Alloy, Titanium Alloy
Days to Ship
-
- All
- 5 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
