Replacement Blade Insert T (Triangle) TCGT-MN-SI
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| TCGT110204MNSIAC1030U |
| TCGT110204MNSIAC510U |
| TCGT110204MNSIAC520U |
| TCGT110204MNSIAC530U |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Work Material | Preferred Hand | Hole Availability | Hole Shape | Breaker Availability | Material Type | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 50.83 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | No Preferred Hand | Yes | Single-sided chamfering (40° to 60°) / Cylindrical bore | No / One side | AC1030U | Coating | ||
MYR 50.65 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | - | Available | one side chamfering (40° to 60°) / Cylindrical bore | One side | AC510U | Carbide Coating | ||
MYR 50.65 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | - | Available | one side chamfering (40° to 60°) / Cylindrical bore | One side | AC520U | Carbide Coating | ||
MYR 50.65 | 10 Piece(s) | 5 Day(s) or more | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | - | Available | one side chamfering (40° to 60°) / Cylindrical bore | One side | AC530U | Carbide Coating |
| Part Number |
|---|
Loading...
Basic Information

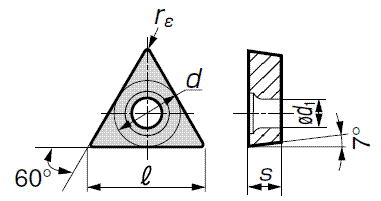

| Shape | T (Triangular) | Use | Outer Diameter / Inner Diameter | Rake Angle | Positive |
|---|---|---|---|---|---|
| Nose Radius | 0.4 | Clearance Angle(°) | 7 | Corner Height Tolerance | ±0.025 |
| Inscribed Circle Tolerance | ±0.025 | Thickness Tolerance | ±0.13 | Slot Code | T |
| Dimension S(mm) | 2.38 | Dimension φd(mm) | 6.35 | Detail Nose Radius(mm) | 0.4 |
| Cutting Edge Length(mm) | 11 |
Specification/Dimensions
-
Preferred Hand
- No Preferred Hand
-
Hole Availability
- Available
- Yes
-
Hole Shape
- one side chamfering (40° to 60°)
- Single-sided chamfering (40° to 60°)
- Cylindrical bore
- Cylindrical bore
-
Breaker Availability
- No
- One side
-
Material Type
-
type
- TCGT□□□□□□MN-SI
-
Work Material
- Steel
- Stainless Steel
- Cast Iron
- Non-Ferrous Metal
- Heat-Resistant Alloy, Titanium Alloy
Days to Ship
-
- All
- 5 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
