Triangle-Shape With Hole, Negative, TNMG-HM, For Medium To Rough Cutting
[Features]
· Wide-width, low-resistance, M-class breaker with right/left-handedness, for medium to rough cutting.
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| TNMG160404LHMAC510U |
| TNMG160408LHMAC510U |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Use | Work Material | Breaker Application | Preferred Hand | Nose Radius | Corner Height Tolerance | Inscribed Circle Tolerance | Thickness Tolerance | Hole Availability | Hole Shape | Breaker Availability | Material Type | Dimension φd (mm) | Detail Nose Radius (mm) | Breaker Rake Angle (°) | Machining Application ② | Cutting Edge Length (mm) | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 34.69 | 10 Piece(s) | 7 Day(s) or more | Outer Diameter / Inner Diameter | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | - | Left Handed | 0.4 | ±0.08～±0.2 | ±0.05～±0.15 | ±0.13 | Available | Cylinder State | Both Faces | AC510U | 9.525 | 0.4 | - | Medium to coarse grinding | 16.5 | Carbide Coating | ||
MYR 34.69 | 10 Piece(s) | 5 Day(s) or more | Outer Diameter / Inner Diameter | Steel / Stainless Steel / Cast Iron / Heat-Resistant Alloy, Titanium Alloy | - | Left Handed | 0.8 | ±0.08～±0.2 | ±0.05～±0.15 | ±0.13 | Available | Cylinder State | Both Faces | AC510U | 9.525 | 0.8 | - | Medium to coarse grinding | 16.5 | Carbide Coating |
| Part Number |
|---|
Loading...

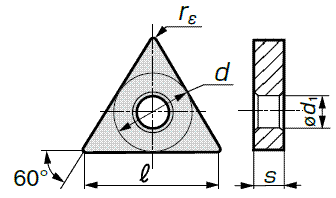

Basic Information
| Shape | T (Triangular) | Rake Angle | Negative | Clearance Angle(°) | 0 |
|---|---|---|---|---|---|
| Slot Code | G | Dimension S(mm) | 4.76 |
Specification/Dimensions
-
Use
- Outer Diameter / Inner Diameter
-
Breaker Application
- Medium to coarse grinding
-
Preferred Hand
- Right Handed
- Left Handed
-
Nose Radius
-
Corner Height Tolerance
- ±0.08～±0.2
-
Inscribed Circle Tolerance
- ±0.05～±0.15
-
Thickness Tolerance
- ±0.13
-
Hole Availability
- Available
- Yes
-
Hole Shape
- Cylinder State
- Cylindrical
-
Breaker Availability
- Both Faces
- No
- Yes (both sides)
-
Material Type
-
Dimension φd(mm)
-
Detail Nose Radius(mm)
-
Breaker Rake Angle(°)
-
Machining Application ②
- Medium to coarse grinding
-
type
- TNMG-HM
- TNMG□□□□□□L-HM
-
Work Material
- Steel
- Stainless Steel
- Cast Iron
- Heat-Resistant Alloy, Titanium Alloy
Days to Ship
-
- All
- 5 Day(s) or Less
- 7 Day(s) or Less
- 9 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
